PBX Monitor

The PBX monitors the status of Trunks, Extensions, Concurrent Call, Conference.

You can log in the PBX web interface, go to PBX Monitor to check the real-time status of your trunks, extensions, and conferences.

VoIP trunk status

Status Description
Registered
blank Registering
blank
  • Unreachable
  • Registration failed, caused by:
    • wrong password
    • wrong authentication name
    • wrong user name
    • transport type inconsistent

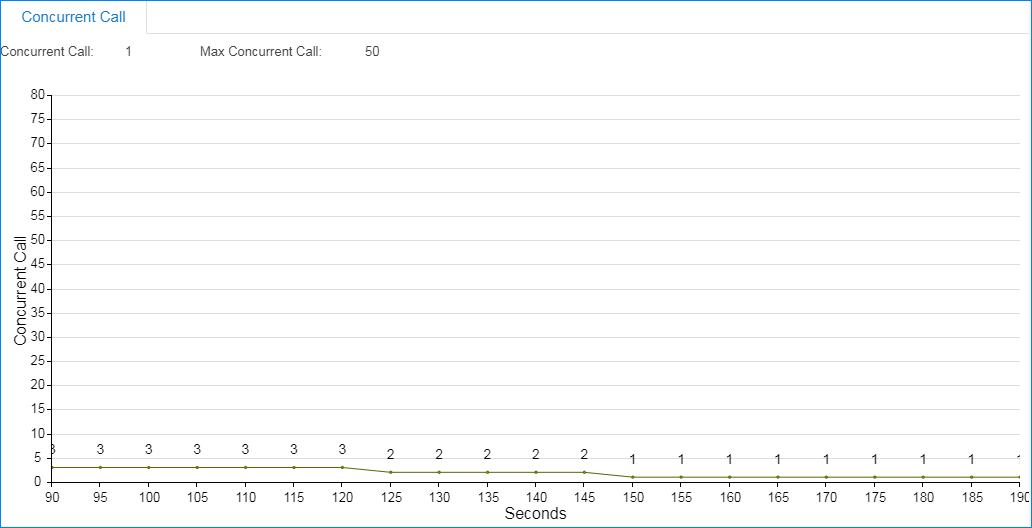

Concurrent Call

Check the maximum supported concurrent calls and the real-time concurrent calls on the PBX.

pbx-monitor-in2pbx

Monitor Conference

Check how many conferences are created on the PBX, and monitor the status of the conferences.

Monitor-conference-in2pbx
